Double Eagle – How to set the APN

Double Eagle – How to set the APN

*Please complete all steps in chronological order to get your Double Eagle working*

1. Make sure your modem is powered down, remove your current sim (it will be deleted) and insert your newest received sim card.
2. Power on the Double Eagle

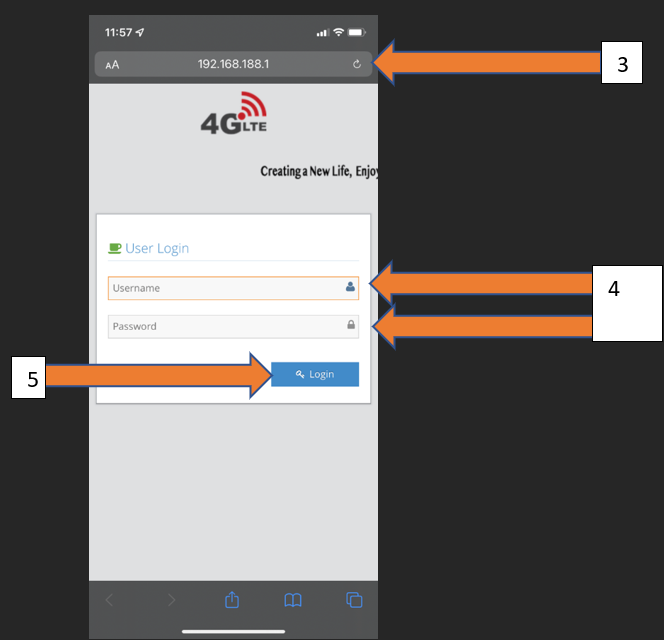

3. On a device connected to your Double Eagle’s wifi, such as a cell phone or tablet, open a web browser and enter 192.168.188.1
4. The Username is admin and the password is admin
5. Press Login

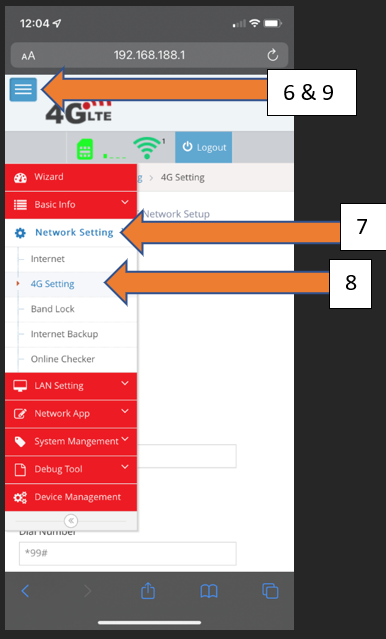

6.Tap the triple dash icon in the upper left corner.

7.Tap Network Setting

8.Tap 4G Setting

9.Tap the triple dash icon again to close the tab

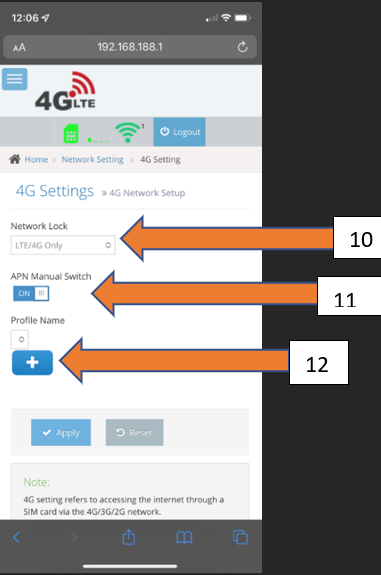

10.Network Lock needs to be LTE/4G Only

11.Make sure APN Manual Switch is ON

12.Click the Plus button to create a Profile Name

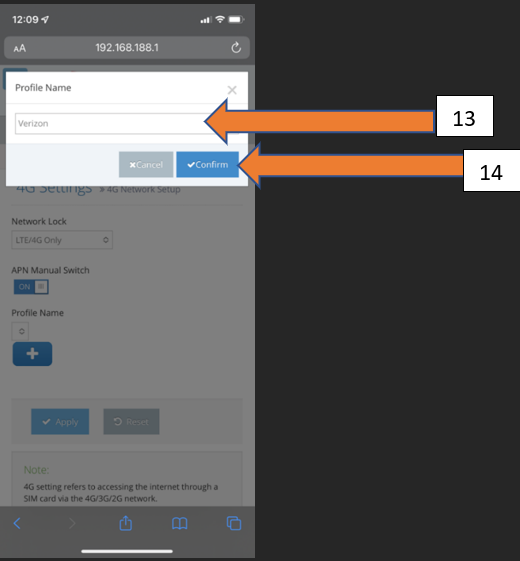

13.For the Profile Name, type Verizon or T-Mobile

14.Press Confirm

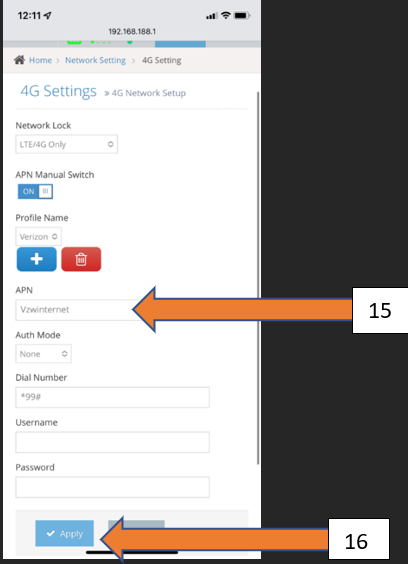

15.In the APN field, type Vzwinternet for Verizon/Scarlet Plan or Fast.t-mobile.com for T-Mobile/Pink Plan

16.Leave everything else as is and click Apply

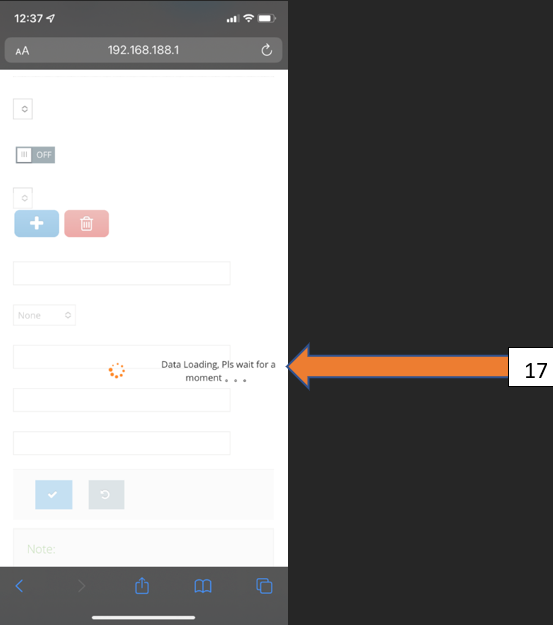

17.Once the Data Loading screen disappears, turn the Double eagle off for 60 seconds and power it back on

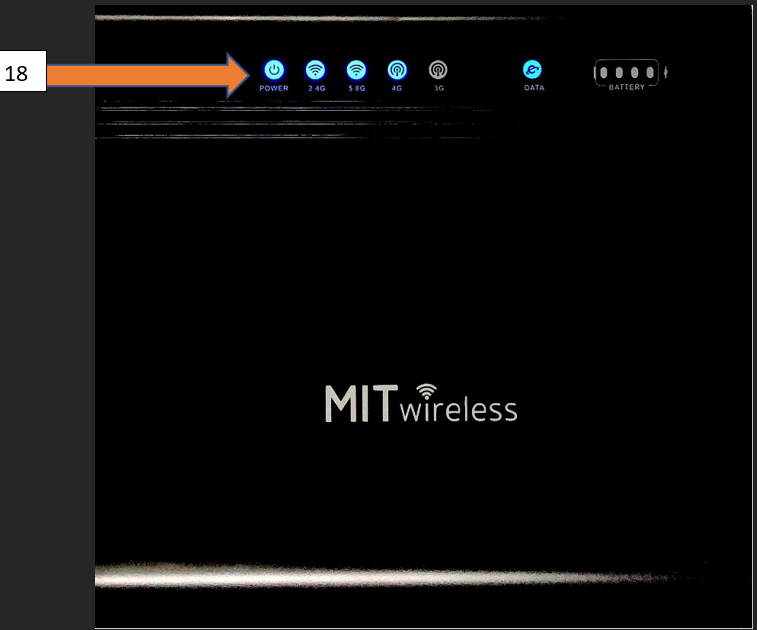

18.Once powered back on, this is what your lights on your Double Eagle should look like.

*If not, please inform technical support at [e-mail]*
